LK710-4G

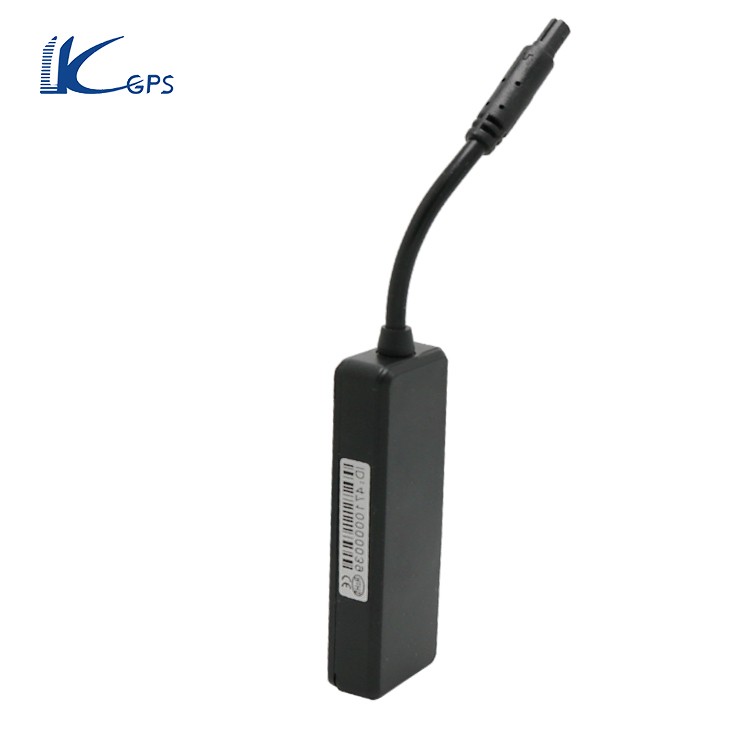

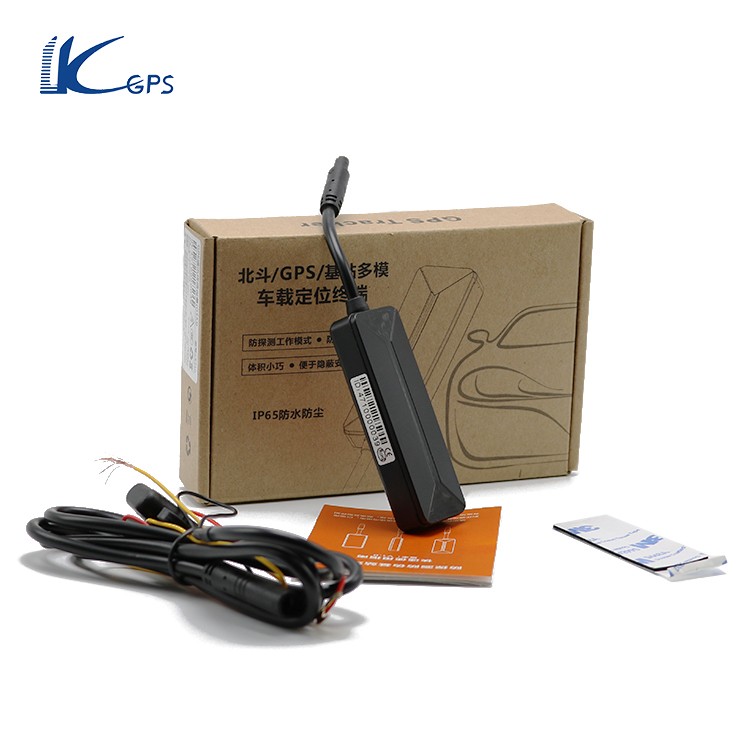

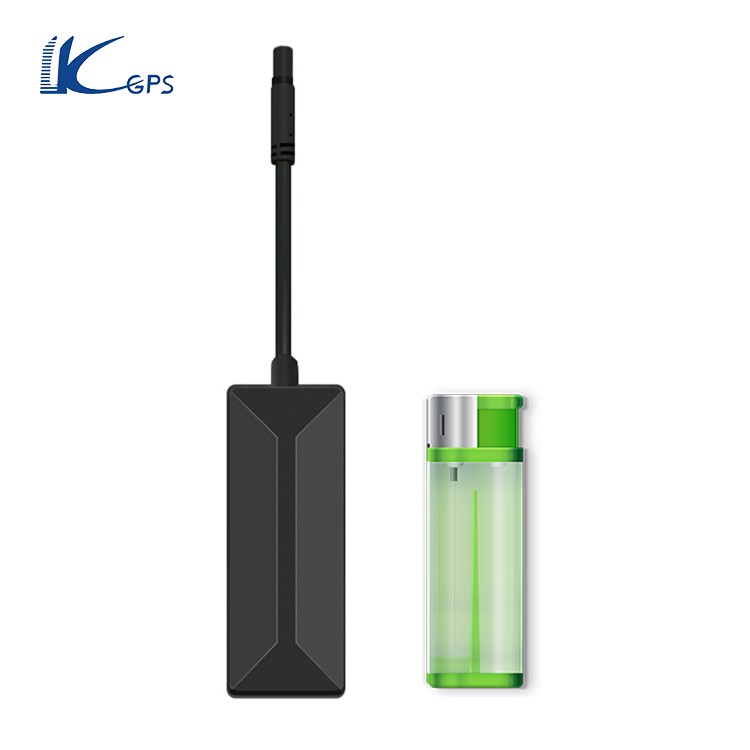

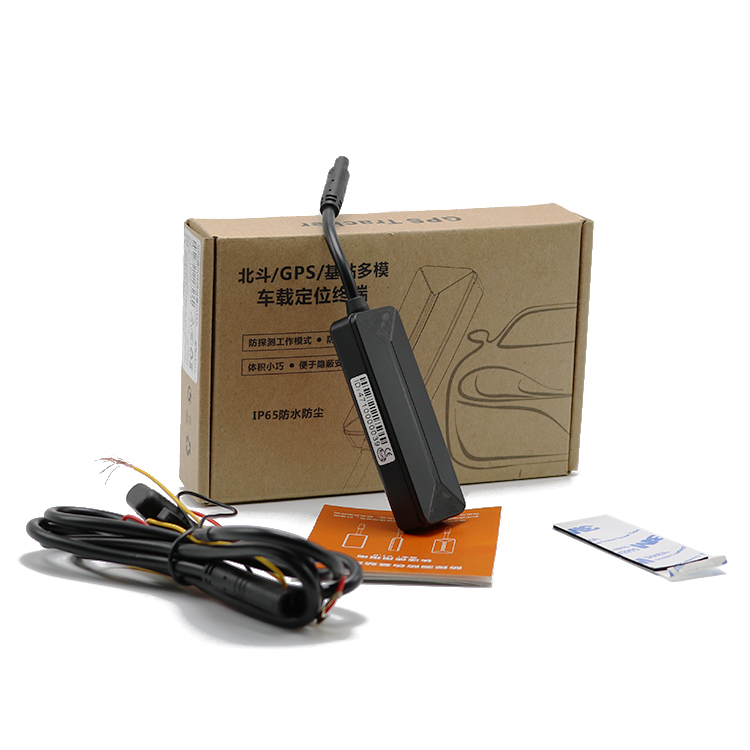

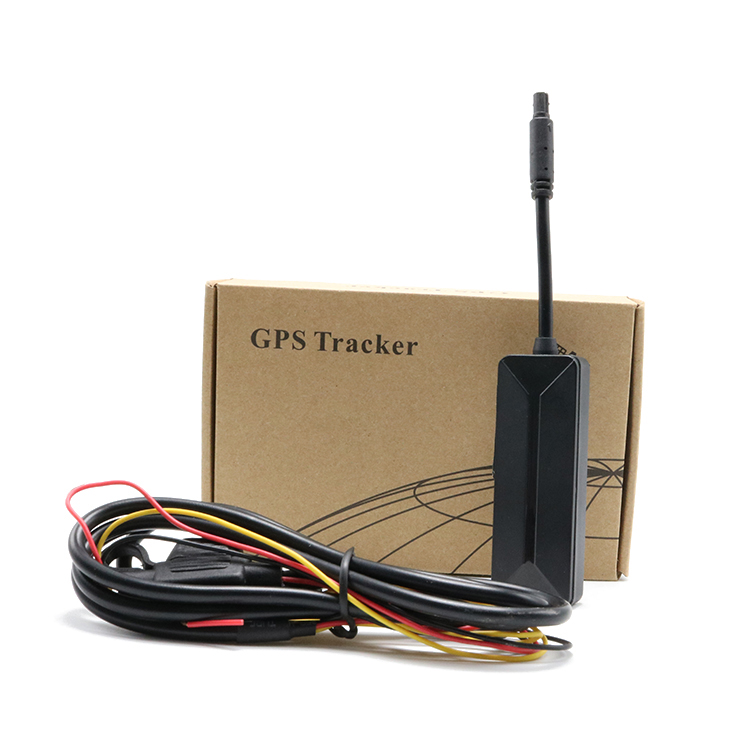

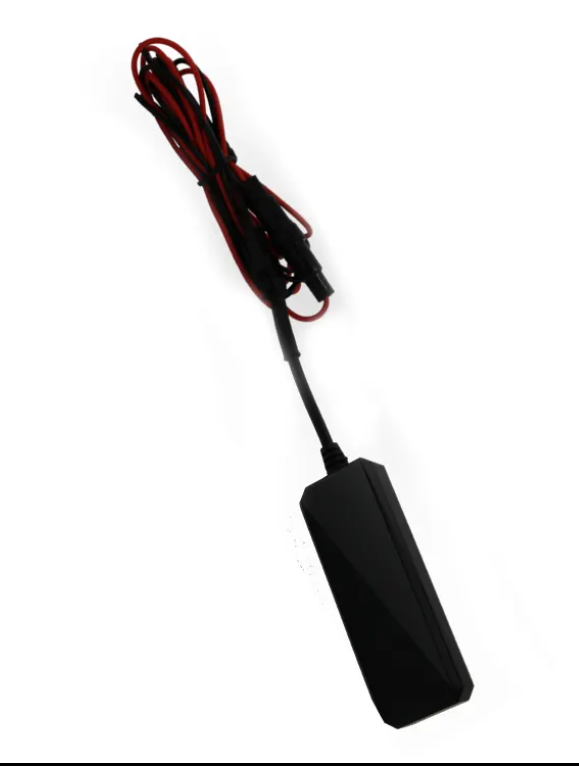

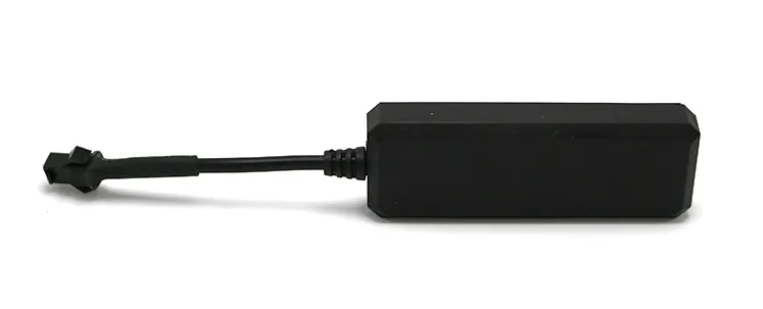

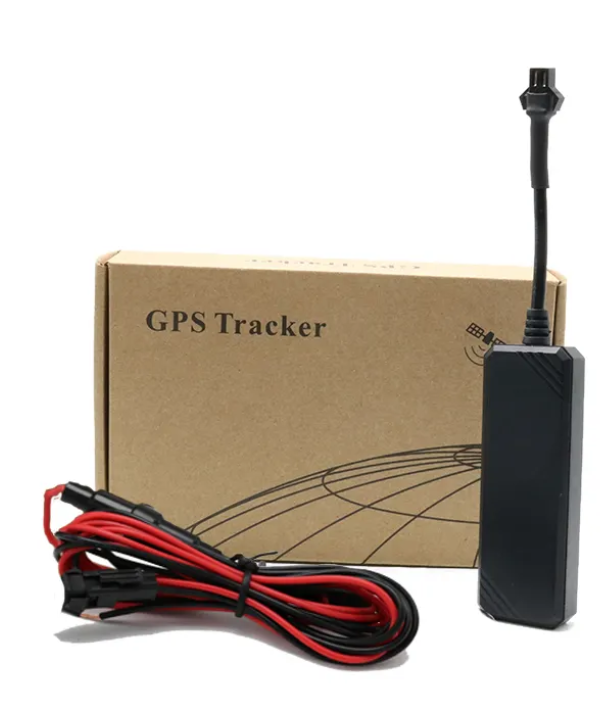

Mini GPS Tracker LK710 Waterproof Cut Off And Resume Oil Remotely Realtime Tracking Car GPS Locator

Functional Features Bar

1.CPU:Qualcomm MDM 9X05
2.GPS chip: Ublox7020 / AT6558R
3.Network: 4G
4.Band:

Cat M LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B27/B28/B66/B85*

Cat NB2: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B28/B66/B71/B85*

Highlight of product:

Real-time Tracking

Electronic fence

LBS/GPS/Beidou/AGPS locating

Cutandresume oil remotely

History Route

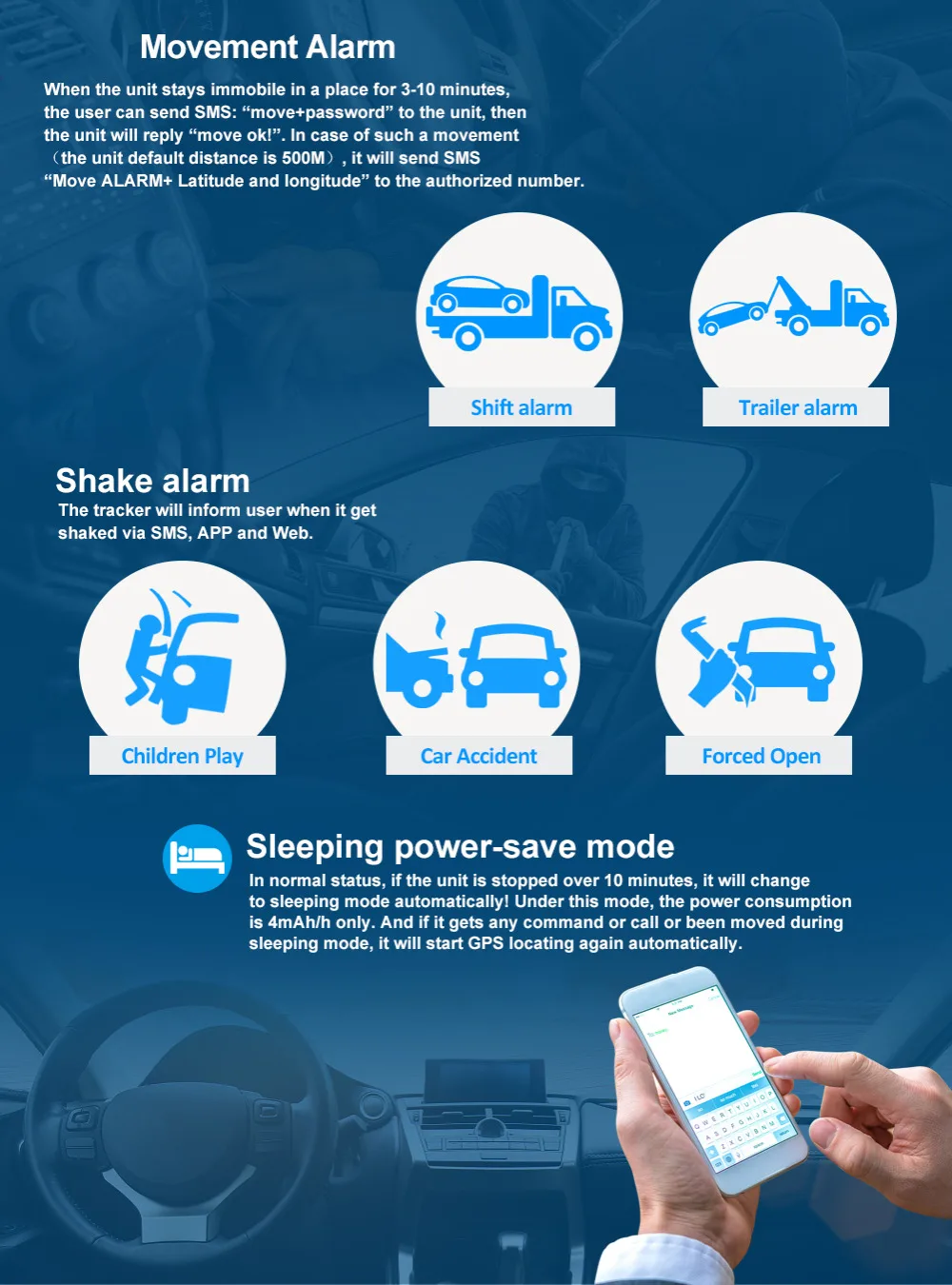

Vibration/Displacement/Low battery/Power off/over speed alert

Mainpowercut off alert

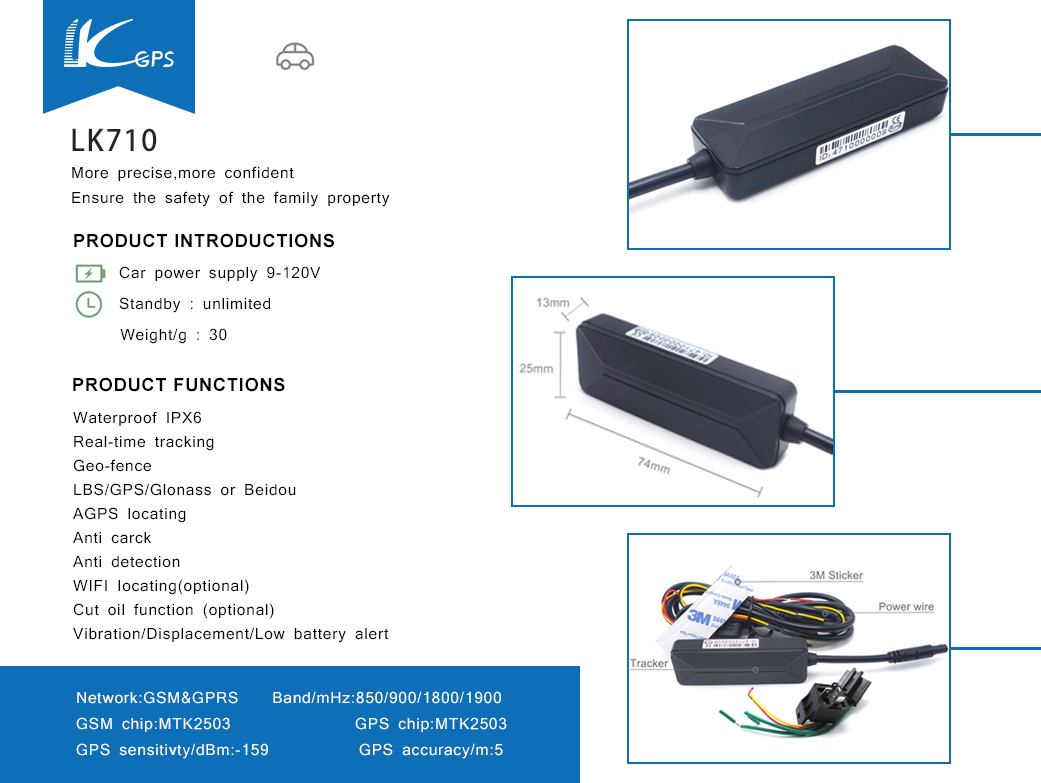

product specification Bar



Content

Specs.

Network

4G

Band

CatM1: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B27/B28/B66/B85*

CatNB2: LTE-FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B28/B66/B71/B B19/ 85*

GPS sensitivity

-159dBm

GPS accuracy

5m

 GPS chip Ublox7020 / AT6558

Time To First Fix

Cold status 35-80s

Warm status 35s

Hot status 1s

Car power supply

9-120V

 Battery/mAh

100

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing

CPU

Qualcomm MDM 9X0

product showjfyikfy5445




24 Hours online and prompt reply, reduce your business potential risk and good after-sales service.



1. Well-trained & experienced staff are ready to answer all your inquiries in English.

2. OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

3. We have professional designer, to satisfy our customer's personalized packing requests.

4. We own well-tranied and passional sales after- sale services.



5.1 year warranty



6.Fast delivery.Our daily out put 1000pcs or more per day.



7. Your business relationship with us will be confidential to any third party.

Q1,How do it work?

It runs on the latest GPS ublox chip-set, a sophisticated GPS microchip embedded into the heart of the tracker which continually reads its own location from low orbiting global satellites and then utilizes the GSM/GPRS infrastructure open treated by your network provider to transmit its current location you. Then you can operate it on PC (Google map or software Platform).All you need to do is insert a working SIM card



Q2, How to use it?

1): Insert a SIM card ( 2G GSM 850 / 900/1800/1900MHz with sufficient fund) in the GPS tracker.And turn on the device outdoors.(when the green light and blue light are both flashing , you can do setting by step as below:)
2): Set admin number,APN and open GPRS to active device.
     Step1. admin123456+space+your phone number
     Step2. apn123456+ space+local apn content
    Step3. gprs123456
    Step 4: Call your tracker.( You'll received a message with coordinates, time, date, battery/signal life.)



IF YOU HAVE ANY QUESTIONS PLEASE CONTACT ME VIA  TRADEMANAGER
